A dead valley roof is more than an awkward roofing detail—it is a drainage defect that can concentrate large volumes of rainwater in one of the most vulnerable areas of a roof. At Steadfast Roofing in Ruskin, FL, we evaluate dead valleys by looking beyond the visible shingles or flashing and determining whether the roof geometry, decking, waterproofing, and drainage path work together as one system.
What Is a Dead Valley on a Roof?
A normal roof valley forms where two sloped roof planes intersect and directs runoff toward the eave. A dead valley occurs when that drainage path terminates, becomes nearly flat, or runs into another roof plane, wall, dormer, or architectural obstruction.
The result is a low-slope pocket where water slows dramatically instead of leaving the roof efficiently. During Florida thunderstorms, runoff from several hundred square feet of roof surface may converge at this relatively small area.
This distinction matters because conventional shingles are designed to shed water down a slope rather than function as a waterproof membrane over areas where water can remain. Under the current Florida Building Code, asphalt shingles are permitted only on roof slopes of 2:12 or greater.
Why Dead Valley Roof Problems Become Serious
The principal problem is concentrated water exposure.
A typical roof plane moves rainfall downward quickly. In a dead valley, opposing slopes may feed water toward the same termination point while the final drainage area has little pitch. Water can then move sideways, back up beneath roofing components, or remain long enough to exploit small installation defects.
Industry guidance from the Insurance Institute for Business & Home Safety emphasizes the importance of valley flashing because valleys are specifically designed to collect and convey water where roof planes intersect.

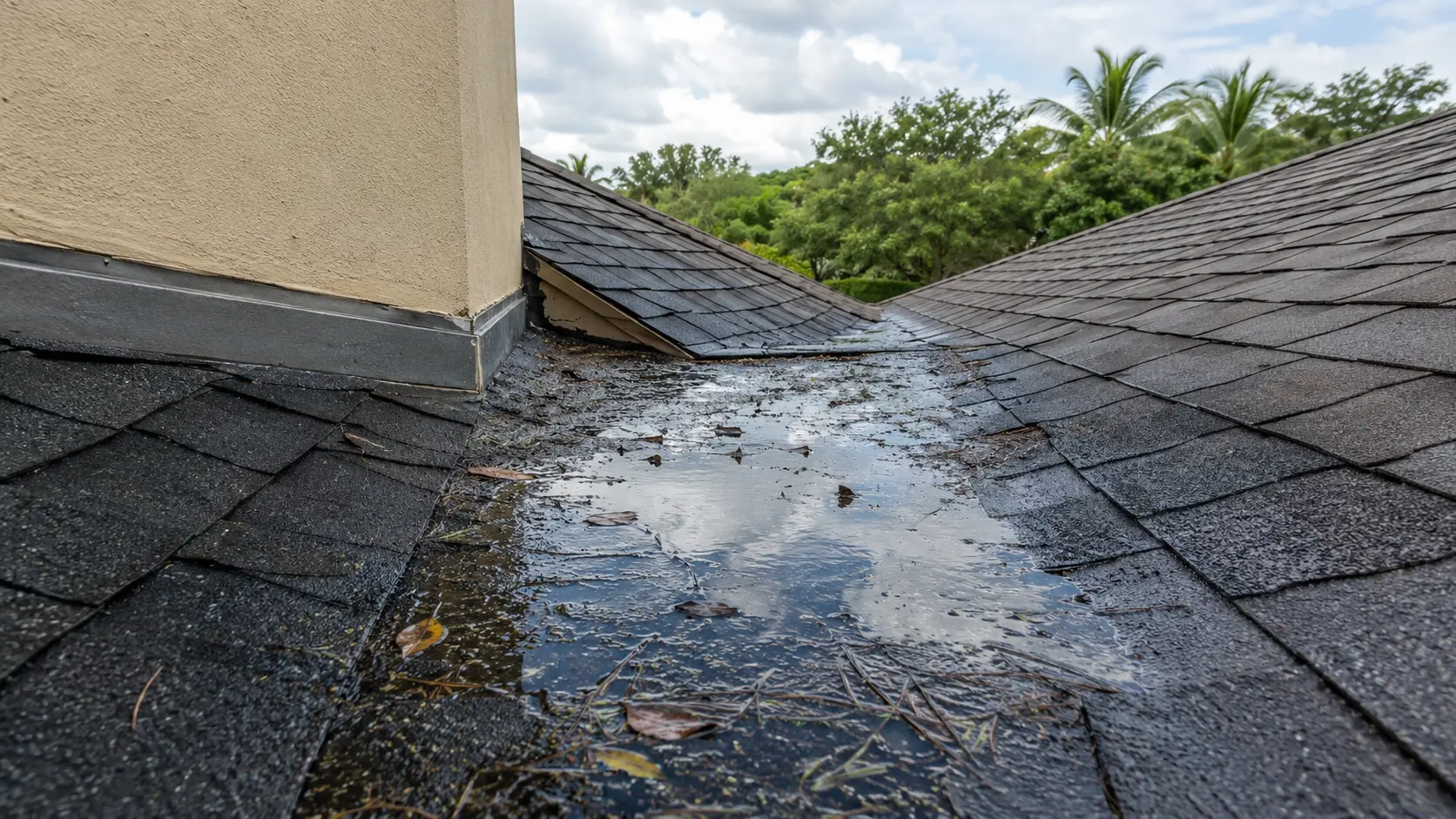

Ponding and Slow Drainage
Water does not need to remain for days to create a problem. Repeated slow drainage exposes laps, fasteners, flashing edges, sealant joints, and underlayment transitions to much more moisture than surrounding roof areas.
After storms, homeowners may notice dark staining, accumulated debris, algae, sediment lines, or areas that remain wet after the rest of the roof has dried.
Dead Valley Roof Leaks
Dead valley leaks frequently appear intermittent because they depend on rainfall intensity and wind direction.
Light rain may produce no visible symptoms. A severe Florida storm can deliver enough water to overwhelm a marginal detail and force moisture beneath shingles or flashing.
Interior symptoms may appear several feet away from the actual entry point because water can travel along roof decking, rafters, trusses, insulation, or drywall before becoming visible.
If staining or active leakage has already developed, our roof repair services can be used to evaluate the source rather than treating the ceiling stain as the location of the defect.
Why Caulk Is Not a Permanent Dead Valley Roof Repair
Roofing cement and sealant can be useful for specific approved details, but they cannot correct defective roof geometry.
Applying additional caulk over seams may temporarily slow water entry while leaving the original drainage problem untouched. Sun exposure, roof movement, thermal expansion, and repeated wetting eventually place stress on the repair.
A lasting solution must create a continuous water-management path from the surrounding roof planes to a safe discharge point.

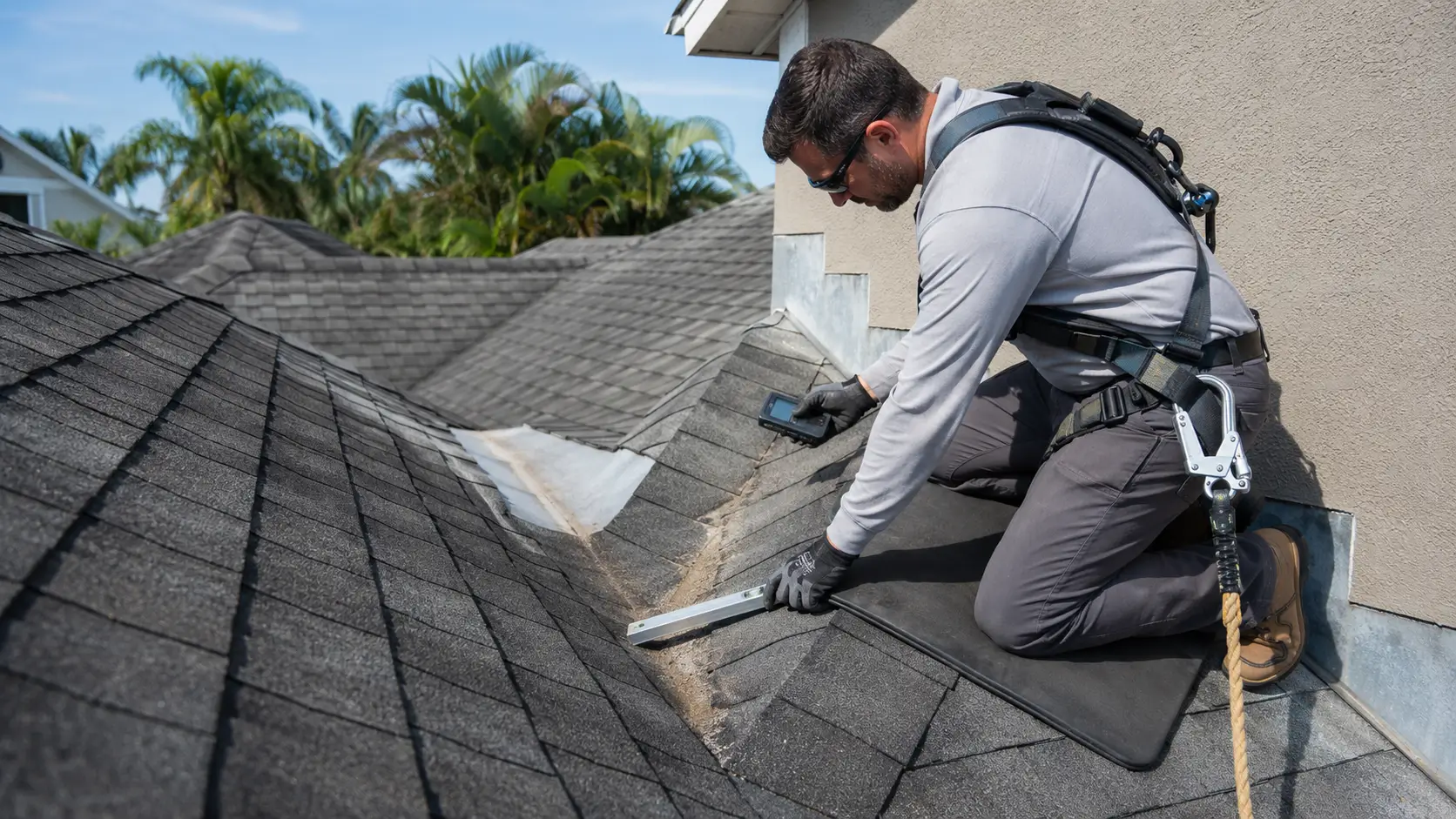

How We Diagnose a Dead Valley Correctly
We start by identifying where the water comes from, where it concentrates, and where it is supposed to exit.
The inspection should include the valley termination, adjoining roof slopes, flashing transitions, membrane condition, fastener locations, wall intersections, shingle edges, and roof decking.
From inside the attic, when accessible, we look for discoloration, elevated moisture, deteriorated decking, previous patching, damaged insulation, and evidence that water has traveled beyond the visible leak location.
Homeowners dealing with recurring valley problems can also review our guide to roof valley damage and repair.
The Best Ways to Fix a Dead Valley Roof
There is no single repair detail suitable for every dead valley. The solution depends on the valley dimensions, roof pitch, roofing material, adjoining walls, drainage direction, and condition of the deck.
1. Rebuild the Area to Create Positive Drainage
When practical, correcting the geometry provides the strongest solution.
A tapered structure, cricket, saddle, or reframed section can redirect water toward the eave instead of allowing it to terminate in a flat pocket.
This approach addresses the cause of the dead valley rather than relying exclusively on additional waterproofing.

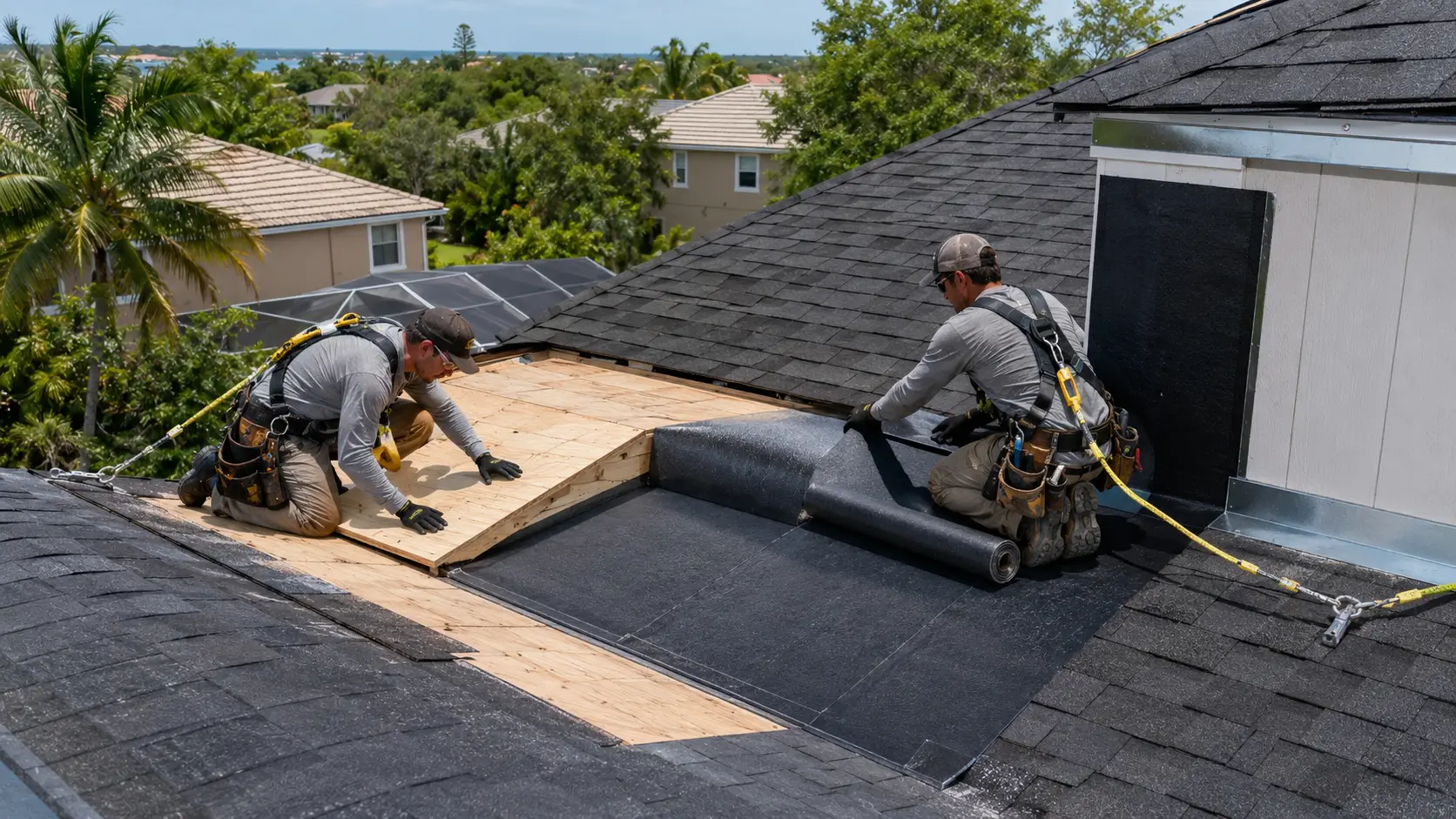

2. Install a Continuous Low-Slope Roofing Membrane
Some roof configurations cannot be substantially reframed. In those cases, the dead valley may need to function more like a low-slope roof section than a conventional shingle valley.
A properly selected self-adhered or modified-bitumen membrane can create continuous waterproof coverage through the low area and extend sufficiently beneath adjacent roofing.
Transitions are critical. A waterproof membrane installed only in the center of the valley can still fail if water reaches an improperly terminated edge.
3. Correct Valley and Wall Flashing
Where a dead valley meets siding, stucco, a vertical wall, or another roof plane, flashing must guide water onto the drainage surface rather than permit it to enter behind the roofing assembly.
Simply placing sheet metal over the valley does not automatically solve the problem. The flashing must be integrated with the waterproofing system and roof covering in the correct sequence.
4. Replace Damaged Roof Decking
Persistent leakage can deteriorate plywood or OSB beneath the valley.
Soft, delaminated, swollen, or structurally compromised decking should not be concealed beneath a new membrane. The damaged section must be removed so the repaired waterproofing system has a sound substrate.
When deterioration extends beyond the valley or the roof is approaching replacement condition, we may evaluate the broader residential roofing system instead of repeatedly repairing one symptom.
Signs You Should Have a Dead Valley Inspected
Warning signs include recurring ceiling stains after heavy rain, visible ponding, debris repeatedly collecting in one roof intersection, deteriorated flashing, lifted roofing edges, algae concentrated in the valley, soft decking, or multiple previous patches in the same location.
A dead valley deserves particular attention when a leak continues returning despite previous sealant or shingle repairs. Recurrence often indicates that the original water-management defect was never corrected.
Preventing Future Dead Valley Problems
Once repaired, the drainage path should remain clear.
Leaves, pine needles, roofing granules, and other debris can restrict an already limited outlet. We recommend checking vulnerable valleys after major storms and keeping nearby trees from continuously depositing organic material onto the roof.
The waterproofing system should also be evaluated whenever adjoining shingles, tile, flashing, or wall materials are replaced. Changes to one component can alter how water reaches the valley.
CONCLUSION
A dead valley roof problem should be treated as a drainage and waterproofing issue, not merely a leak that needs sealing. The most durable repair may involve correcting the slope, installing a continuous low-slope membrane, rebuilding flashing transitions, replacing damaged decking, or combining several of these measures. When water continues collecting or leaking at the same roof intersection, we recommend having the entire drainage detail evaluated before additional surface patches are applied. Homeowners who need a professional assessment can contact Steadfast Roofing to schedule an evaluation.
FAQ
Can a dead valley roof be repaired without replacing the entire roof?
Yes. If the surrounding roof covering and decking remain serviceable, a localized dead valley roof repair may be possible. The repair must extend far enough into the adjoining roof surfaces to create a reliable waterproof transition rather than patching only the visible low spot.
What roofing material works best in a dead valley?
The correct material depends on the actual slope and roof design. Areas too flat for conventional shingles often require a continuous waterproof roofing membrane designed for low-slope conditions. Flashing and membrane transitions must also be compatible with the surrounding roofing system.
Why does my dead valley only leak during heavy rain?
Heavy rain increases the volume and depth of water moving through the valley. When several roof planes discharge into a restricted area, water can reach flashing laps, membrane edges, fasteners, or other locations that remain dry during lighter rainfall. Wind-driven rain can further increase the chance of water moving beneath vulnerable roof components.
